I have a device that is sending data that is a number representing a state. I’d like this to display as the string representation of the state instead of the number.
The mapping is as follows:
0 = closed
1 = opening
2 = open
3 = closing
I have a device that is sending data that is a number representing a state. I’d like this to display as the string representation of the state instead of the number.
The mapping is as follows:
0 = closed
1 = opening
2 = open
3 = closing

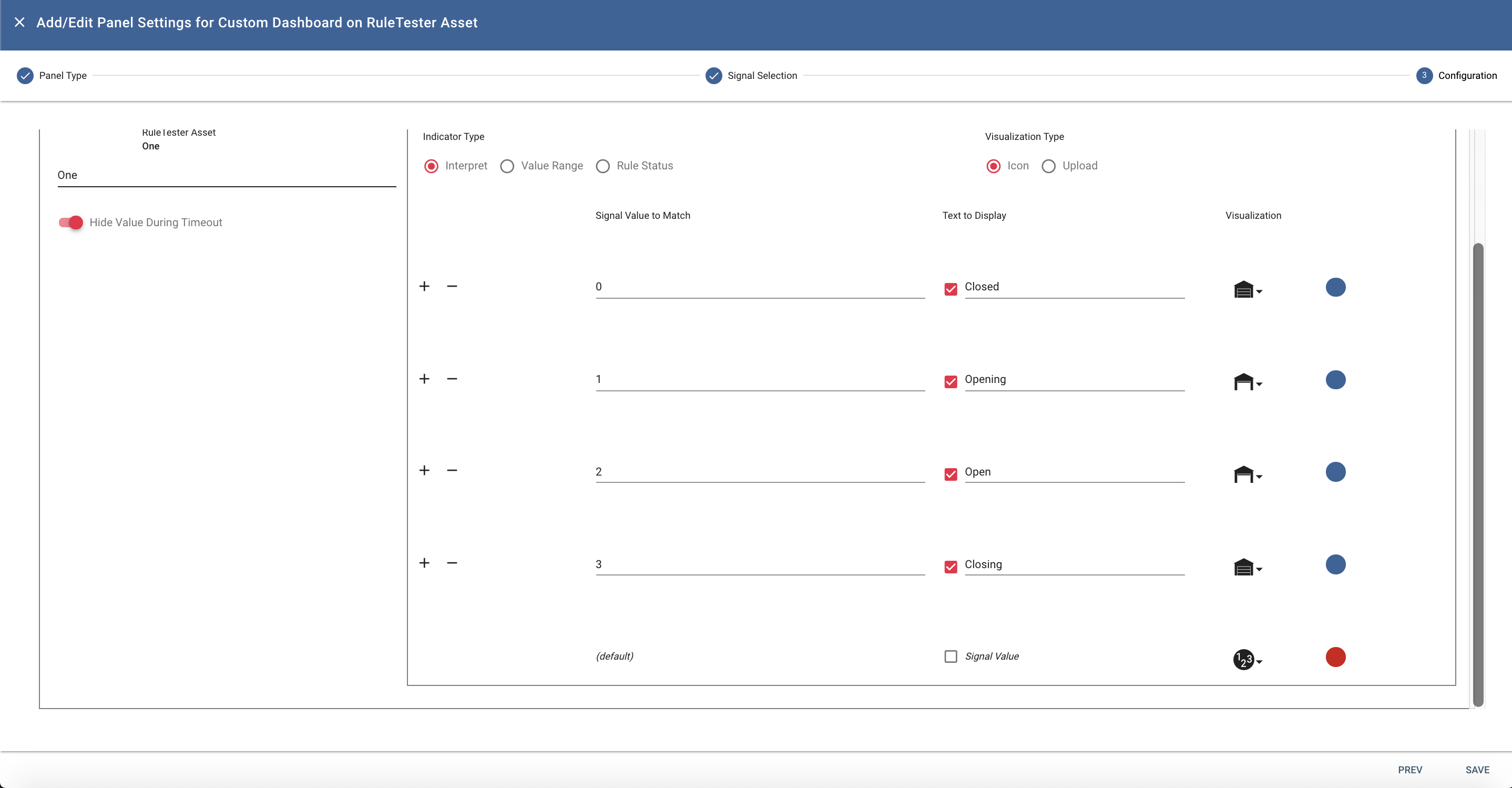

If you are not concerned about the history of this string, and only want to display the string value, a key indicator panel can be used.
To keep history, a custom Inline Insight Module can be created. Documentation on Custom Inline Insights can be found here
An example for this scenario could be created in the following way:
This example can be imported using the following JSON:
{
"action": "(A == 0 ? \"Closed\" : A == 1 ? \"Opening\" : A == 2 ? \"Open\" : A == 3 ? \"Closing\" : \"Unknown\")",
"constants": [],
"description": "Translate number to state",
"dsl": "mathjs",
"id": "custom_iimf_vnobklo22ij",
"inlets": [
{
"description": "",
"name": "Input",
"primitive": "numeric",
"tag": "A",
"translations": null,
"types": null,
"units": null
}
],
"name": "Number To State",
"outlets": [
{
"description": "",
"name": "State",
"primitive": "string",
"types": null,
"units": null
}
],
"translations": null,
"type": "transform"
}
